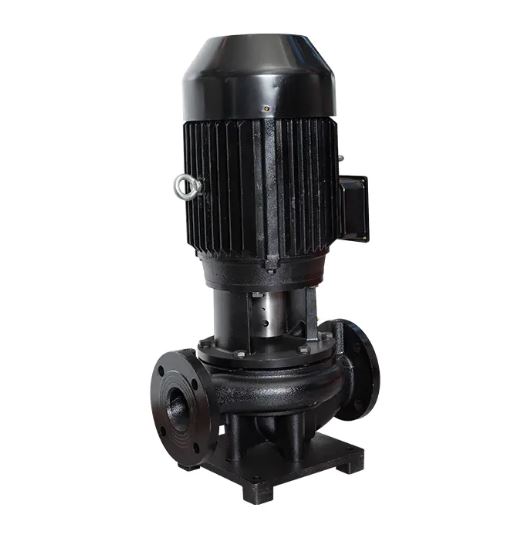

VERTICAL TD HIGH-EFFICIENCY AND ENERGY-SAVING CIRCULATION PUMP
The TD type single-stage pipeline circulation pump is a green, environmentally friendly, energy-saving, and efficient pipeline centrifugal pump, which is used to transport clean water without solid particles and liquids with physical and chemical properties similar to water. At the same time, based on the TD high-efficiency vertical pipeline centrifugal pump, we provide hot water, high temperature, non-corrosive chemical pumps, and oil pumps based on different operating temperatures and media.

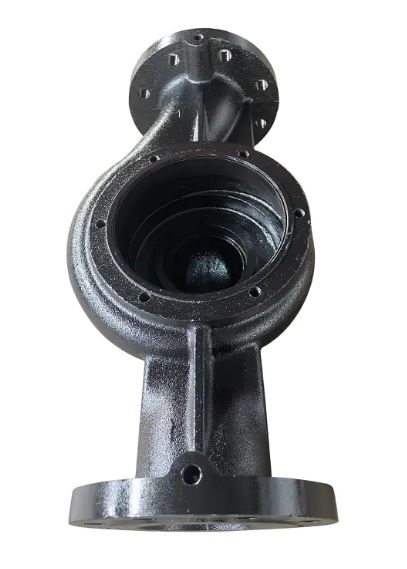

VERTICAL TD HIGH-EFFICIENCY AND ENERGY-SAVING CIRCULATION PUMP BODY
Vertical TD Energy Efficient Circulating Pump Pump Body is the shell of the Vertical TD Energy Efficient Circulating Pump, which is used to house the internal components of the pump. It is characterised by a vertical arrangement and is suitable for locations with limited installation space, such as high-rise buildings. The vertical pump body is designed for easy repair and maintenance of the pump components. The main parts of the pump body of a vertical TD energy efficient circulating pump are arranged vertically rather than horizontally. Vertical pumps typically take up less space vertically and may be more convenient in some applications. The pump body is the housing of the pump and usually encloses and protects the internal parts. The design of the pump body is critical to the performance and reliability of the pump.
ISG series single-stage single-suction vertical centrifugal pump is a new type of vertical centrifugal pump that replaces IS horizontal pump, DL pump and other conventional products, which is a highly efficient and energy-saving product designed in strict accordance with the international standard ISO2858 and the latest national standards by adopting the performance parameters of IS centrifugal pumps and the structure of vertical pumps.
This series of pumps has a flow range of 1.5~1200m3/h and a head range of 8~150m, and is divided into more than 250 kinds of specifications, such as basic type, flow expansion type, A, B, C cutting type, etc. According to the different flow mediums and temperatures, this series of pumps can be used in a variety of applications. According to the different flow media and temperature, ISGR hot water pump, ISGH chemical pump, ISGB oil pump and ISGHB vertical explosion-proof chemical pump series products are designed and manufactured with the same performance parameters.
